Artec Point II Features
When it comes to capturing intricate objects with high repeatability and pinpoint accuracy, Artec Point II always delivers, making it the ideal solution, wherever you need fast, reliable data.
Metrology-grade accuracy
Artec Point captures complex surfaces with incredible accuracy and repeatability, consistently delivering high-quality data for industrial metrology.
Steadfast tracking
Capture objects at a rate of up to 120 FPS for tracking that stays fully locked onto objects, ensures there are no holes in your data, and makes Artec Point a breeze to use.
Wide field of view
The Artec Point 3D laser scanner features a vast scanning area that allows it to capture larger objects while keeping targets in view for seamless, high-speed 3D scanning.
ISO & VDI/VDE-certified
Artec Point’s high accuracy and repeatability are ISO & VDI/VDE-certified, so you can use it for advanced metrology, confident that you’ll get immediate, reliable results.
With an intuitive interface and unshakable tracking, Artec Point ensures that you get repeatable results regardless of operator skill, without having to fine-tune any settings
Robust build quality
With a featherweight frame and ergonomic design, Artec Point can easily be used one-handed, and tilted to scan under, behind, or into seemingly unreachable areas.
Housed in a metal, grip-friendly casing, the Artec Point 3D scanner is ideal for industrial metrology applications where durability is essential.
Real-time Visualization
Artec Studio’s intuitive color-coded 3D Radar gives users the feedback needed to adjust their scanning approach for optimal data capture in real time.
Divide scans into sections, uncover defects with Artec Studio’s 3D Compare Map, and ensure products meet standards with intuitive Tolerance Checking.
Scanning Modes
Artec Point’s three modes allow you to switch between scanning large objects at pace, capturing intricate details, and digitizing deep holes, at the click of a button.
Industries
Artec 3D Scanners are used in a wide variety of industry applications
Reverse Engineering
- Product design
- Customization
- 3D documentation
Manufacturing
- Quality control
- Rapid prototyping
- Aerospace
Medical
- Orthopedics
- Prosthetics
- Plastic surgery
Science & education
- Research
- Training
- Online museums
Art & design
- Heritage preservation
- Architecture
- CGI
- Fashion

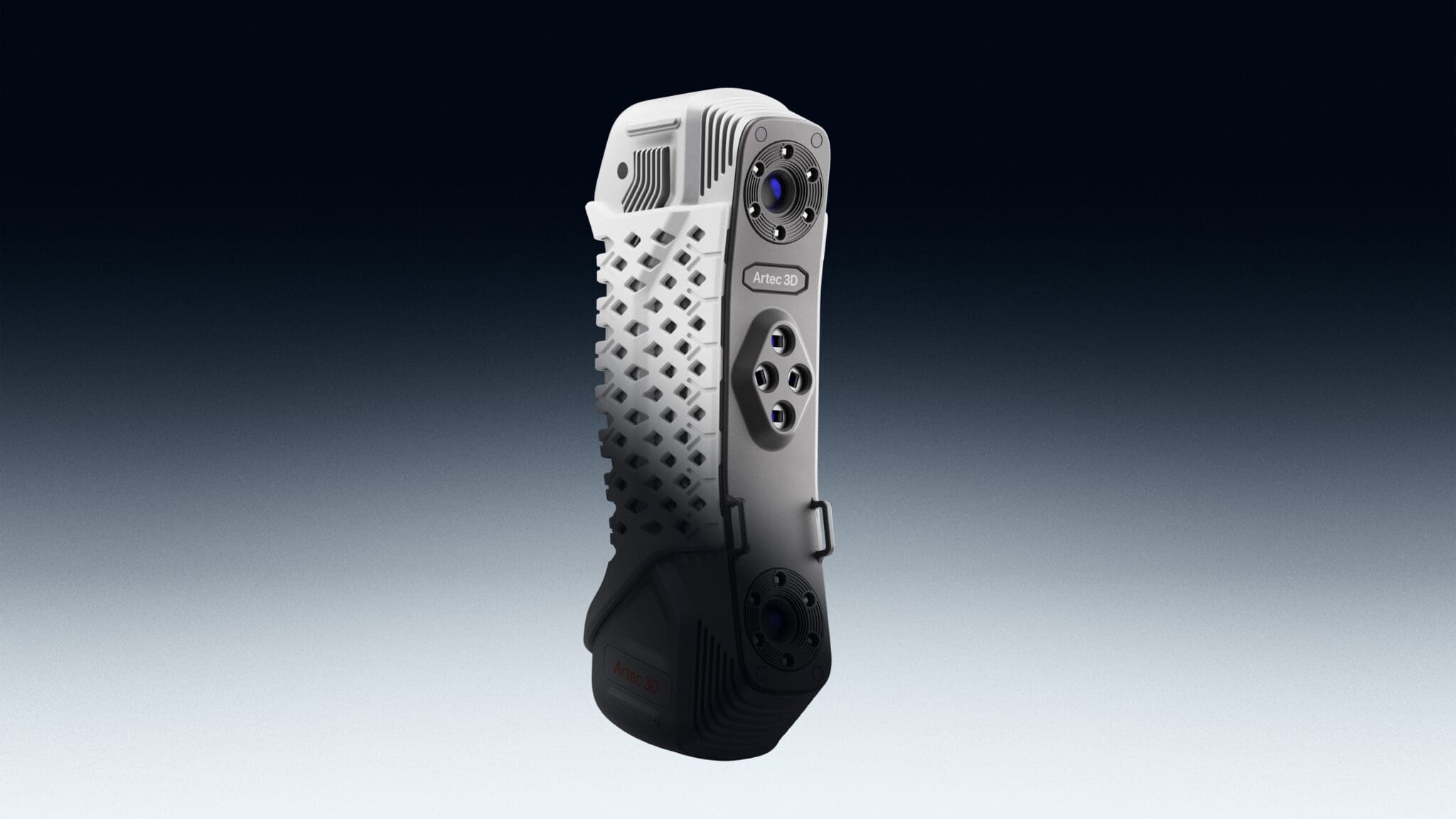

Laser scanner for metrology capture in the palm of your hand
Artec’s first target-based 3D laser scanner introduces ISO-certified, metrology-grade 3D scanning to your workflow. Artec Point II rapidly captures complex surfaces – even those featuring black or shiny exteriors – with up to 0.02 mm accuracy for quality control and reverse engineering.
Alternate between grid, parallel, and single-laser modes to maximize results and use HD cameras fixed at a steep viewing angle to capture in narrow areas. With a light yet robust metal chassis, the Artec Point II is also versatile for use in demanding industrial environments.
When it comes to capturing intricate objects with high repeatability and pinpoint accuracy, Artec Point II always delivers, making it the ideal solution, wherever you need fast, reliable data.
A metrology-certified 3D laser scanner
Artec Point’s high accuracy and repeatability are ISO & VDI/VDE-certified, so you can use it for advanced metrology, confident that you’ll get immediate, reliable results.
Capture in confined areas
With a featherweight frame and ergonomic design, Artec Point can easily be used one-handed, and tilted to scan under, behind, or into seemingly unreachable areas.
Achieve high repeatability
With an intuitive interface and unshakable tracking, Artec Point ensures that you get repeatable results regardless of operator skill, without having to fine-tune any settings.
Artec Studio Software
Smart 3D data processing has never been easier
Create professional 3D models with the most comprehensive software for 3D scanning and data processing on the market today.
Enjoy a wide range of innovative features, including the cutting-edge Autopilot mode that expertly guides you through the whole post-processing pipeline, automatically choosing the best algorithms for your data, so you can watch your high precision model being put together before your eyes.
You can also take full control of your results with the wide variety of advanced features available.
Adapt to different surfaces in a single click
Artec Point II has three modes allowing you to switch between scanning large objects at pace, capturing intricate details, and digitizing deep holes, at the click of a button.
Ultra-fast Scanning
Accelerate your workflow using a 54 crossed-laser grid that accurately captures large objects at pace, and keep poly-count to a minimum for lightweight 3D models.
Hyper-fine Scanning
Deploy 17 parallel lasers to digitize complex surfaces in high resolution, detect more intricate details like engraved features, and get the data needed for advanced metrology tasks.
Deep Hole Scanning
Scan with a single laser to maneuver into hard-to-reach areas and capture data exactly where you need it – even inside deep grooves or holes, for quality inspection and reverse engineering.
Example 3D Scanned Models
Interact with examples created with the Artec Point II 3D Scanner
Specifications
View the specifications for the Artec Point II handheld metrology 3D scanner
| Resolution & accuracy | |
|---|---|
| Resolution, up to | 0.02 mm (0.0008 in) |
| Accuracy, up to | 0.02 mm (0.0008 in) |
| 3D accuracy over distance, up to | 0.015 mm + 0.035 mm/m (0.0006 in + 0.0004 in/ft) 0.015 mm + 0.015 mm/m (0.0006 in + 0.0006 in/ft) with Artec Metrology Kit |
| Scanning range | |
|---|---|
| Size of scanning object/area | S–L |
| Working distance | > 300 mm (> 11.8 in) |
| Linear field of view H×W @ furthest range | Up to 700 × 600 mm (27.6 × 23.6 in) |
| Depth of field | 550 mm (21.7 in) |
| Speed | |
|---|---|
| 3D reconstruction rate for real-time fusion, up to | 120 fps |
| Data acquisition speed, up to | 5.8 mln measurements/second |
| Scanning modes | |
|---|---|
| Ultra-fast scanning | 54 crossed blue lasers |
| Hyper-fine scanning | 17 parallel blue laser lines |
| Deep hole scanning | 1 single blue laser line |
| Hardware | |
|---|---|
| Scanner type | Handheld |
| Power source | AC/DC power adapter, 24V |
| Interface | USB 3.0 |
| 3D structured-light source | Class II blue laser (eye-safe) |
| Dimensions H×D×W | 203 × 80 × 44 mm (8 × 3.1 × 1.7 in) |
| Weight | 0.57 kg/1.3 lbs |
| Warranty | 1 year |
| Compatibility | |
|---|---|
| Supported OS | Windows 10, 11 |
| Recommended computer parameters | Intel processor with 8 cores, 16 threads, 2.6 GHz and above, 64+ GB RAM, GPU with 8 GB VRAM |
| Minimum computer requirements | Intel processor with 8 cores, 16 threads, 2.6 GHz and above, 32+ GB RAM, GPU with 4 GB VRAM |
| Output formats | |
|---|---|
| 3D mesh | OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB |
| CAD | STEP, IGES, X_T |
| Measurements | CSV, DXF, XML |
Frequently Asked Questions
Does the Artec Point 3D laser scanner require targets?
Yes, Artec Point is a target 3D scanner. This means that users will need to attach targets to any object they wish to capture for best results. But after calibration the process is the same as other Artec 3D scanners – simply capture and process scan data on Artec Studio.
How do Artec Point’s scanning modes work?
You can switch between Artec Point’s three modes at the click of a button. Ultra-fast scanning quickly captures large objects in less detail, Hyper-fine scanning offers higher resolution for tricky-to-scan surfaces, while Hole scanning is ideal for digitizing narrow geometries.
Can I pair Artec Point with other Artec 3D scanners?
Absolutely! Data captured with Artec 3D scanners (including Artec Point) can be combined into incredibly detailed models formed using the highest-resolution data from each device.
